| ○ | 精度等級：DIN 8 | ○ | 齒面硬度：55~55HRC | |||
| ○ | 齒型：直齒 | ○ | 表面處理：研磨 | |||
| ○ | 壓力角：20° | ○ | 齒面處理：精切削 | |||
| ○ | 材質：S45c | ○ | 熱處理：齒面高周波熱處理 | |||
|

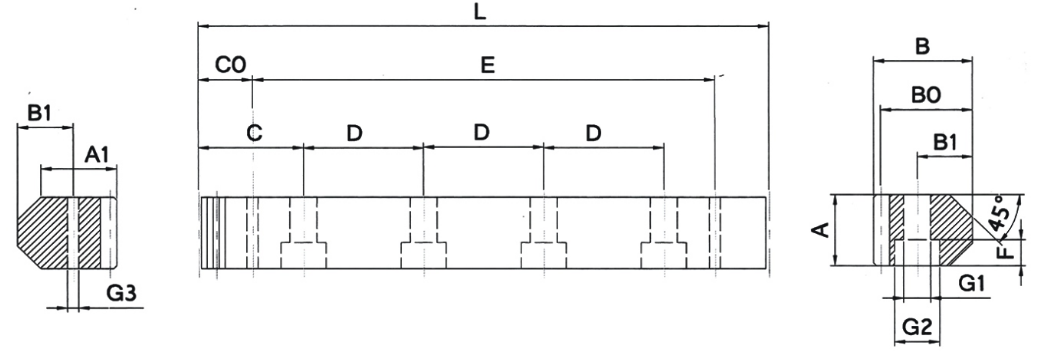

產品型號 Catalog NO. |
L |
模數 (M) |
A | B | B0 | C | D |
孔數 Hole NO. |
B1 | B2 | G1 | G2 | F | C0 | E | G3 |
| SSGH015-050 | 500 | 1.5915 | 14.5 | 24.5 | 22.9 | 62.50 | 125 | 4 | 13 | 20 | 7 | 11 | 7 | 30 | 440 | 5.7 |
| SSGH015-100 | 1000 | 1.5915 | 14.5 | 24.5 | 22.9 | 62.50 | 125 | 8 | 13 | 20 | 7 | 11 | 7 | 30 | 940 | 5.7 |
| SSGH020-050 | 500 | 1.5915 | 19.5 | 29.5 | 27.9 | 62.50 | 125 | 4 | 15.5 | 23.5 | 9 | 15 | 9 | 30 | 440 | 5.7 |
| SSGH020-100 | 1000 | 1.5915 | 19.5 | 29.5 | 27.9 | 62.50 | 125 | 8 | 15.5 | 23.5 | 9 | 15 | 9 | 30 | 940 | 5.7 |
| SSGH025-050 | 502.5 | 2.3873 | 24.7 | 33 | 30.61 | 62.81 | 125.625 | 4 | 18.5 | 25.2 | 9 | 15 | 9 | 30 | 442.5 | 7.7 |
| SSGH025-100 | 1005 | 2.3873 | 24.7 | 33 | 30.61 | 62.81 | 125.625 | 8 | 18.5 | 25.2 | 9 | 15 | 9 | 30 | 945 | 7.7 |
| SSGH035-050 | 500 | 3.1831 | 34.6 | 46.6 | 43.41 | 62.50 | 125 | 4 | 28.6 | 36.7 | 11 | 18 | 11 | 30 | 440 | 7.7 |
| SSGH035-100 | 1000 | 3.1831 | 34.6 | 46.6 | 43.41 | 62.50 | 125 | 8 | 28.6 | 36.7 | 11 | 18 | 11 | 30 | 940 | 7.7 |
